| Size |
|
| Dimensions |
Approx. 338 mm (W) x 188 mm (D) x 173 mm (H) (including keybord LCD unit) |
| Weight |
Approx. 4.6 kg (including keybord LCD unit, excluding Li-ion Battery) |
| Printing |
|
| Print method |
Thermal Transfer |
| Compatible tubes *1 |
Inner diameter: Φ2.5 mm - Φ6.5 mm |
| Thickness: 0.5 mm |
| Material: PVC |
| Print head |
454 dot/360 dpi (for labels) |
| 86 dot/360 dpi (for tubes) |
| High resolution mode: max. 720 dpi × 360 dpi (when connected to a computer) *2 |
| Print height |
Label: max. 32 mm (when using 36 mm tape) *3 |
| Tube: max. 6 mm (when using Φ6.5 mm tube) *3 |
| Print speed |
Label: |
| AC Adapter: max. 60 mm/sec. |
| Battery: 20 mm/sec. - 60 mm/sec. (varies depending on the tape width) |
| Tube: |
| max. 40 mm/sec. |
| Actual print speed varies depending on the conditions. |
| Cassette |
Brother TZe / MZe tape cassette (3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm, 24 mm, 36 mm widths) |
| Brother HS tube cassette (5.8 mm, 8.8 mm, 11.7 mm, 17.7 mm, 23.6 mm widths) |
| Brother FLe label cassette (21 mm x 45 mm) |
| Brother TR ribbon cassette (12 mm width) |
| No. of lines |
▪ TZe / MZe tape cassette |
| 36 mm tape: 17 lines; 24 mm tape: 13 lines; 18 mm tape: 10 lines; 12 mm tape: 6 lines; 9 mm tape: 4 lines; 6 mm tape: 3 lines; 3.5 mm tape: 1 lines |
| ▪ HS tube cassette |
| 23.6 mm tape: 12 lines; 17.7 mm tape: 10 lines; 11.7 mm tape: 6 lines; 8.8 mm tape: 4 lines; 5.8 mm tape: 2 lines |
| ▪ PVC tube |
| Φ6.5 mm tube: 2 lines; Φ6.0 mm tube: 2 lines; Φ5.0 mm tube: 2 lines; Φ4.0 mm tube: 2 lines; Φ3.5 mm tube: 2 lines; Φ3.0 mm tube: 2 lines; Φ2.5 mm tube: 1 line |
| Memory (local files) |
|
| File storage |
max. 99 files |
| Power Supply |
|
| Adapter |
AC adapter (AD9100ESA): 24 V |
| Battery (Optional) |

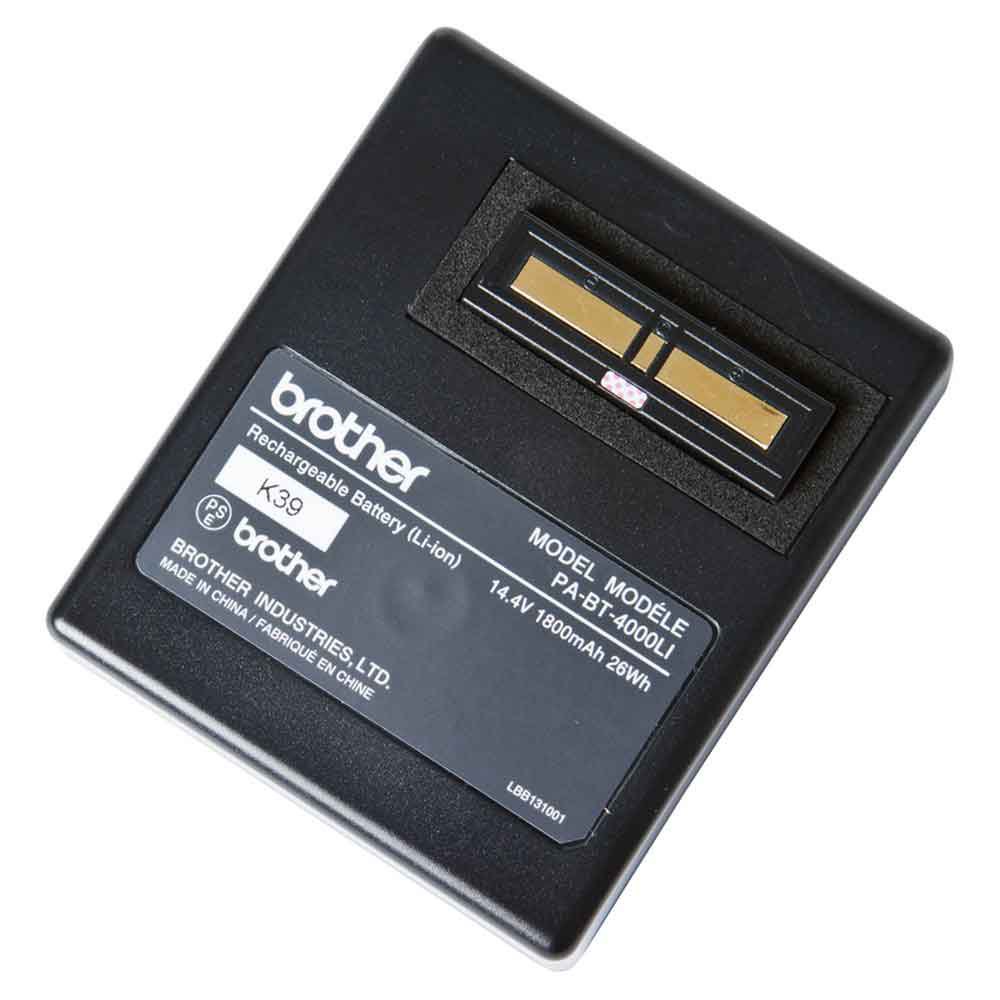

Li-ion Battery (PA-BT-4000LI): 14.4 V |
| Auto Power-off |
Li-ion Battery (PA-BT-4000LI): 30 min |
| AC adapter (AD9100ESA): Off |
| Interface |
|
| USB |
Version 2.0 Full Speed |
| Wi-Fi |
▪ Wireless Direct: IEEE 802.11n |
| ▪ Ad-Hoc mode: IEEE 802.11b |
| ▪ Infrastructure mode: IEEE 802.11b/g/n |
| ▪ WPS 2.0 |
| Other |
|
| Operating temperature / humidity |
▪ TZe / MZe engine |
| When running: between 10°C and 35°C / between 20% and 80% |
| max. wet bulb temperature: 27°C |
| ▪ Tube engine |
| When running: between 15°C and 35°C / between 20% and 80% |
| max. wet bulb temperature: 27°C |
| *1 |
You may not be able to obtain high-quality printing results depending on the type of tube you are using. Before using a tube, print a test to check the results. |
| *2 |
The high resolution mode can be used if the AC adapter is connected and TZe laminated tape with black ink is installed. |
| You cannot use this function for TZe-FX**1 tape. |
| *3 |
Actual character size may be smaller than maximum print height. |
